The PentaPuzzle

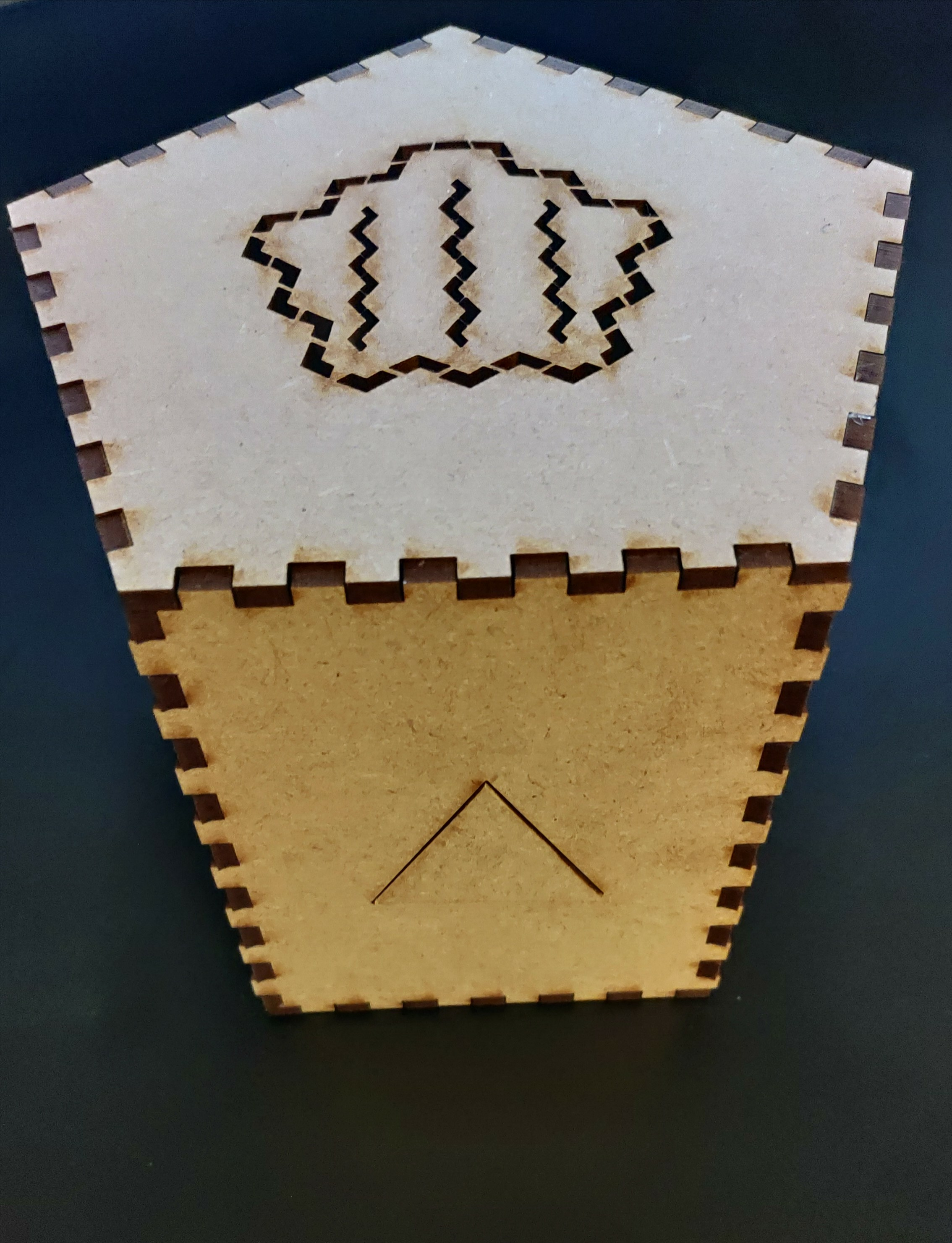

The PentaPuzzle has the user placing objects of different shapes into openings in a pentagon shaped puzzlebox. The different objects only fit into certain spots on the box. If all the objects are fitted into the correct place, the light inside will turn on and shine through the top of the stylized box, casting a pattern of shadows onto the surrounding environment. This gives the user the satisfaction on making objects fit through openings, while also giving a sense of accomplishment and a visual reward for completing the puzzle.

The primary qualities of the puzzlebox is it’s pentagonical shape, it’s many slots to put objects into and how it lights up when all it’s conditions are fullfilled. Throughout the user’s experience, it will take advantage of the user’s sense of feeling and sight.

To improve the product in the future, i would use a better light-source in order to make the light more apparent. I would also use magnets in order to give the shapes a better tactile feeling as the user inserts them into the box.


Demonstration video:

Google Drive

In this video, i demonstrate how the light turns on when the user inserts the final piece.

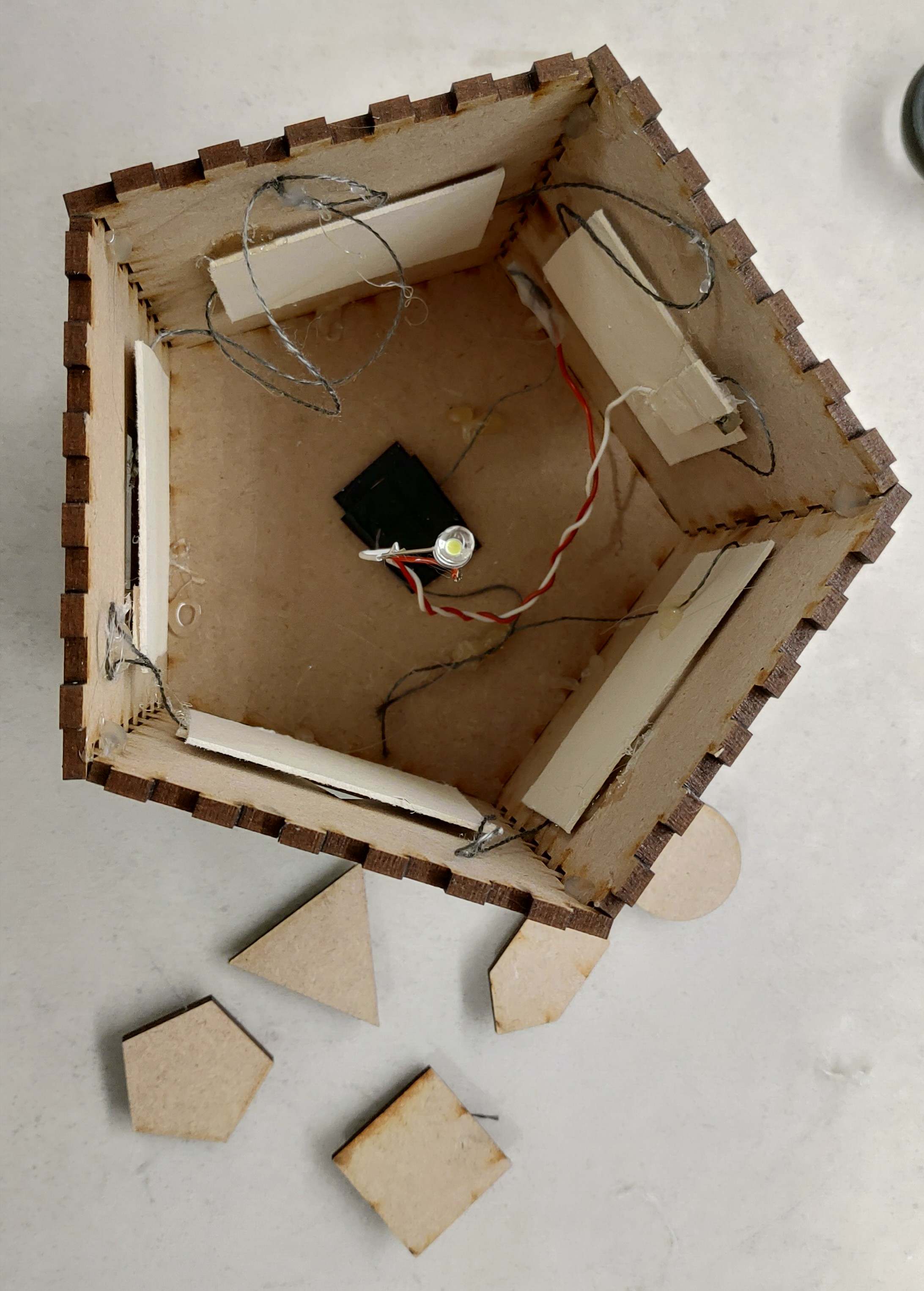

Inside the box

The inside view of the puzzlebox. Shown in the picture is the battery, the led-light and the wiring
that is necessary to enable the different objects to complete a circuit of electricity and power the light when properly inserted.



Sketches

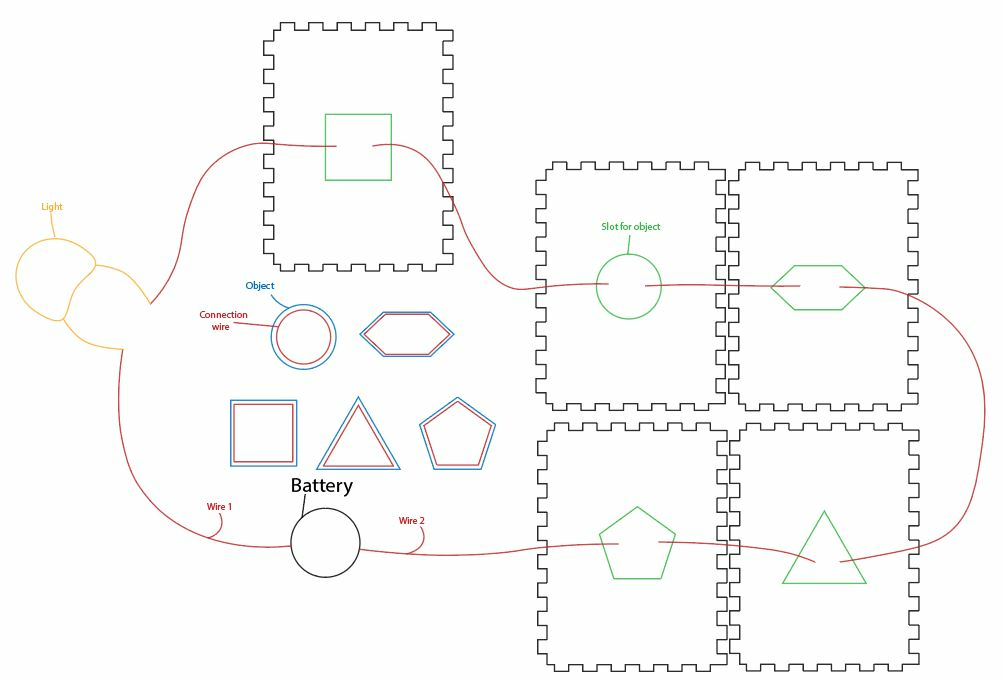

All items



This is a visualization of all the components required to make the technical side of the project work.

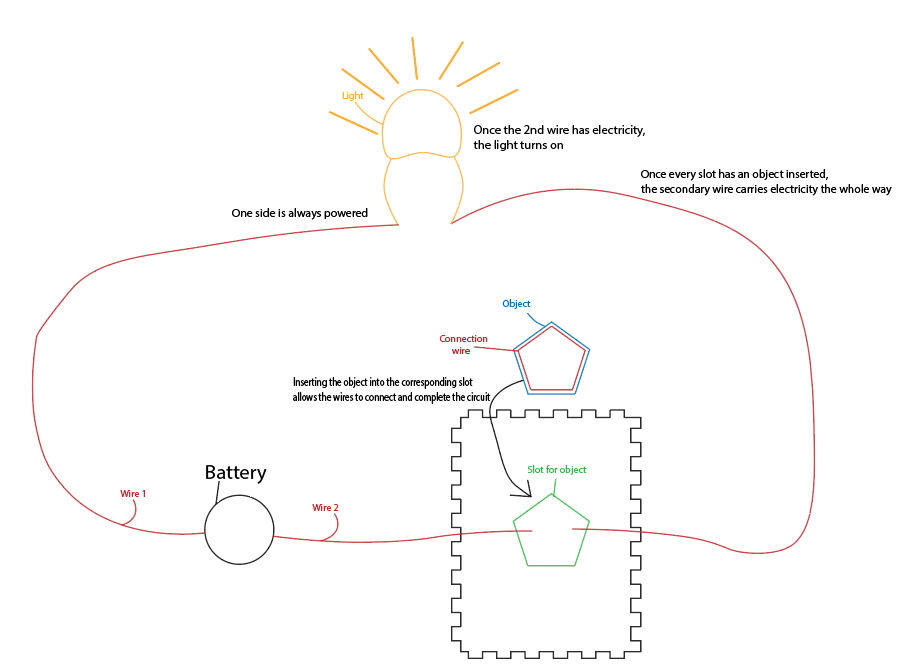

Instructions for use



This image shows the basics of how the product works. The scope has been downsized to make it easier to understand. The only difference is that the wires have to be connected for all five slots instead of one.

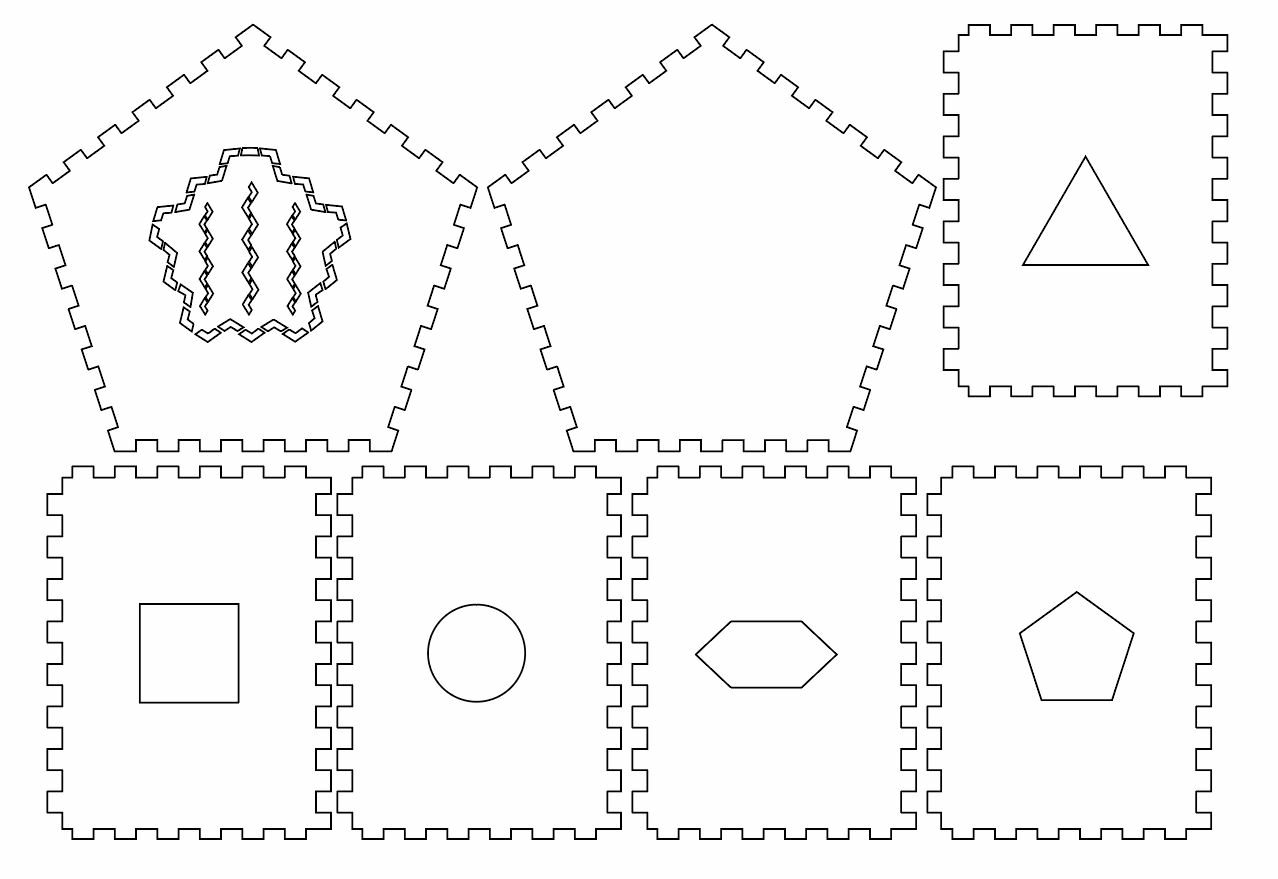

Box schematics



These are the plans i made for the box itself, These were later cut out using a laser cutter along every line shown.
