Writing (…) by Hanns Holger Rutz

This exposition documents a series of reconfigurations of a piece originally conceived in 2011, 'Writing Machine'. The series continued with 'Wr_t_ng M_ch_n_' (2018), attempting to implement all aspects within a Mellite workspace, and 'Writing (simultan)' (2020), highlighting a new interest in the coming-together of otherwise independently operating processes. The current reconfiguration is 'Writing (suspend)' (2023), which returns to a single circle form, but replacing the display tables with a light-weight suspension as well as introducing kinetic and sensorial elements. The series is an exercise in understanding the concept of reconfiguration (algorithmic and not), conducted first within the Algorithms that Matter framework, and currently within the Simultaneous Arrivals project.

Return

The programme note becomes short:

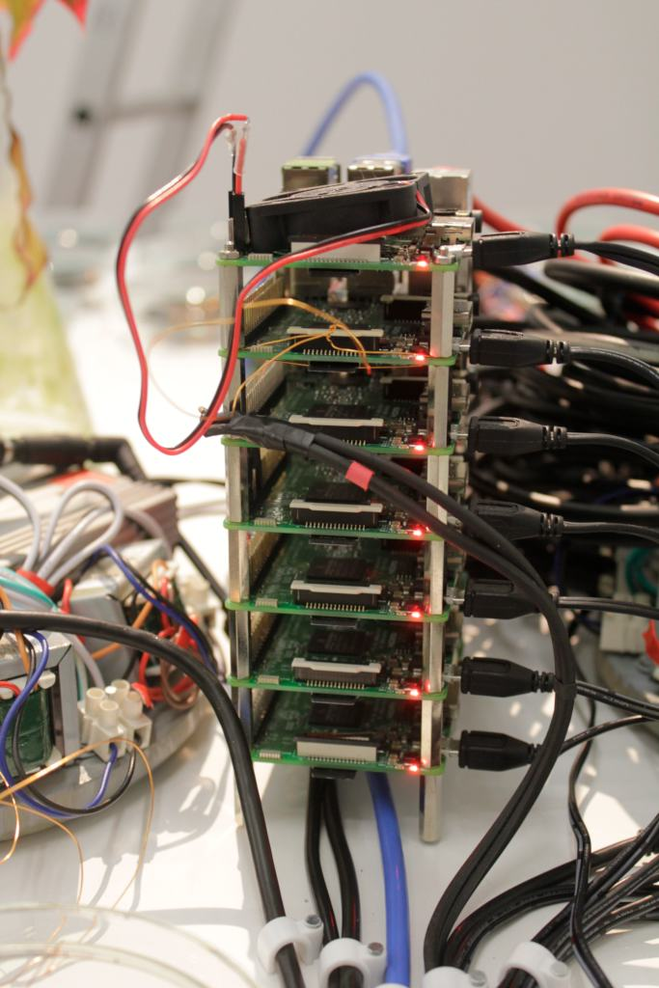

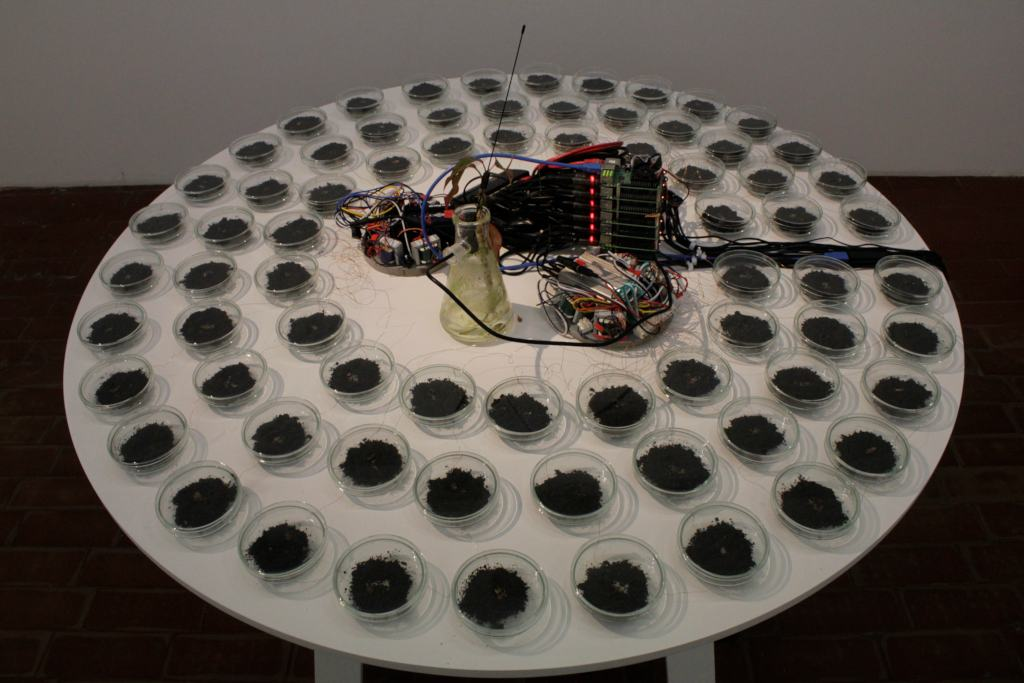

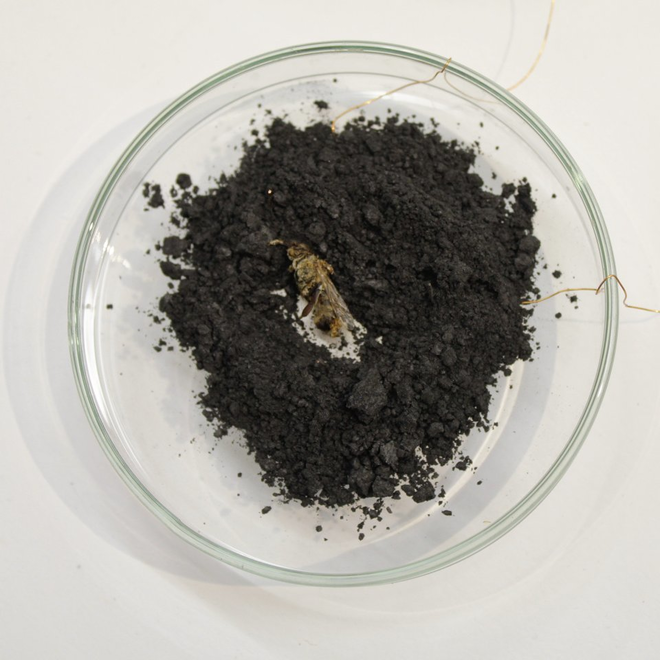

'This piece is an exercise in reconfiguration. It reworks a previous piece, Writing Machine from 2011, first reducing it to its physical arrangement: A circular tableau of petri-dishes, sonically excited by small piezo speakers placed inside the dishes. An algorithm performs a continuous gesture, where sound fragments are rewritten based on the particular movements of a similarity search in a real-time sound data base. In this new instance, the monolithic and centralised machine has been replaced by a decentralised structure, spreading the algorithm over several small computers each of which has a certain autonomy. A radio antenna serves as a source of sonic material, tapped in an “uninterested” attitude.'

wr_t_ng m_ch_n_

On the Second Instance

Before reimplementing, I was trying (171009) to read and understand the old source code again:

- the algorithm is decomposed into sub-functions, e.g. the overall is `DifferanceAlgorithm` that takes `DifferanceDatabaseThinner`, `DifferanceDatabaseFiller`, etc.
- the algorithms have a `step` method that produce a `Future` of something
- there is no clear model/view separation as in the new SP
- parameters are formalised as `Motion` which are stateful stepping functions
- `Phrase` has a length, a real-time `player` method and an off-line `reader` method

# (Main) Algorithm

- `overwriteSelector.selectParts`
- run filler
- for each part, `databaseQuery.find`
- for the matches, flat-map `overwriter.perform`
- run thinner
- add to phase-trace

## Motion

- constant(value: Double)
- linrand(lo: Double, hi: Double)
- exprand(lo: Double, hi: Double)
- sine   (lo: Double, hi: Double, period: Int)
- walk   (lo: Double, hi: Double, maxStep: Double)
- linlin (in: Motion, inLo: Double, inHi: Double, outLo: Double, outHi: Double)
- linexp (in: Motion, inLo: Double, inHi: Double, outLo: Double, outHi: Double)
- coin   (prob: Double, a: Motion, b: Motion)

It's striking that this is very similar to patterns!

An alternative for the non-stateful motions would be to evaluate a function (expr) with time index. It would avoid the awkward
position sensitivity of patterns (e.g. imagine `linlin` where bounds are also motions/patterns/streams).

## OverwriteSelector

- `val num = frequencyMotion.step.toInt`
- iterate over `bestPart`
- a breaking point is found as max dissim
- some weird 'centering' is performed, whereby a region between minLen/maxLen around the breaking point is moved to include a centre position

## Filler

- `perform`
- `television.capture(dur)`
- `database.append(file, off, dur)`
- `latency` - "Latency in capture result in seconds" (zero for file, live = 0.2sec); it's probably an offset into the _captured_ file,
   such that initial silence due to limiter is skipped

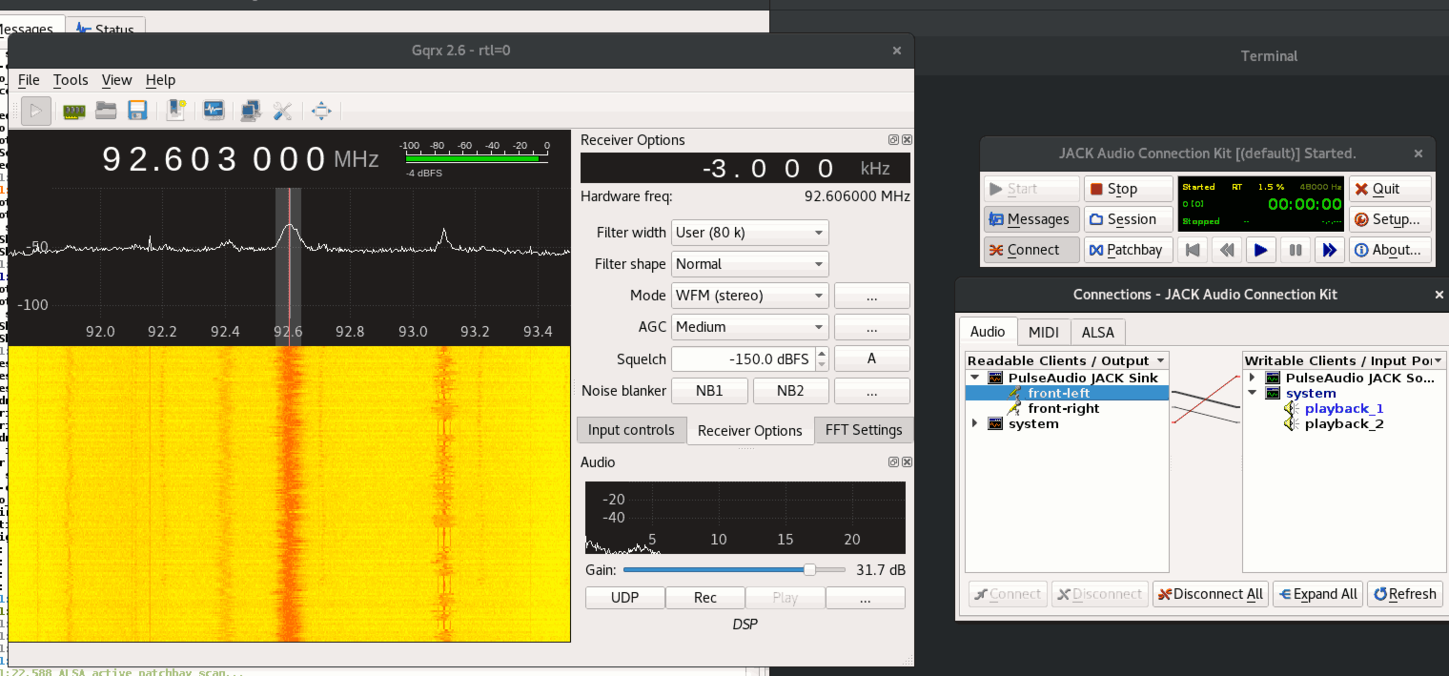

# gqrx

Remote control protocol.

Supported commands:
f - Get frequency (Hz)
F - Set frequency (Hz)
m - Get demodulator mode
M - Set demodulator mode (OFF, RAW, AM, FM, WFM, WFM_ST, WFM_ST_OIRT, LSB, USB, CW, CWL, CWU)
l STRENGTH - Get signal strength (dBFS)
l SQL   - Get squelch threshold (dBFS)
L SQL <sql> - Set squelch threshold to <sql> (dBFS)
u RECORD - Get status of audio recorder
U RECORD <status> - Set status of audio recorder to <status>
c - Close connection
AOS - Acquisition of signal (AOS) event, start audio recording
LOS - Loss of signal (LOS) event, stop audio recording
\dump_state - Dump state (only usable for compatibility)

Reply:
RPRT 0 - Command successful
RPRT 1 - Command failed
