Technical Description

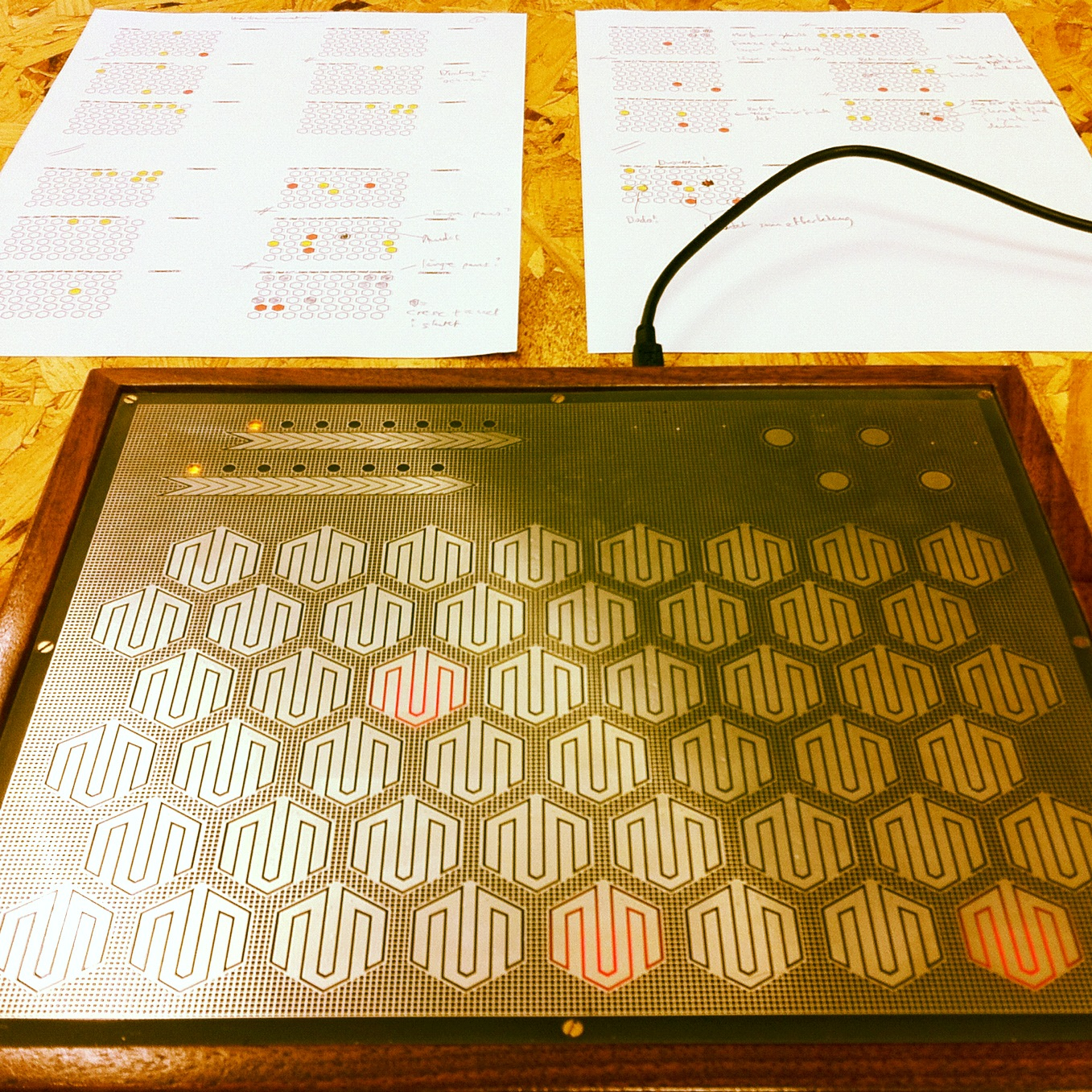

The Manta controller interface has 48 high-resolution touch-sensitive pads with two-color LEDs, 4 touch sensitive buttons with two-colour LEDs (red and amber), and two high-resolution touch sensitive sliders.
In the Parsimonia system, each hexagonal pad can be assigned one or more predefined modules of different types that generate or process sound or data. These module types include synths or samplers, SuperCollider patterns, hardware inputs, effects, MIDI note or MIDI control change, control voltage, and internal parameter control. A module can also be a whole composition, as further discussed in Patch 5: Triangular Progressions and Patch 8: Sinew0od for Buchla in the Patches section.
The surface sensors in the pads always control the most significant module parameter, i.e., amplitude or modulation amount. While the pads functionality remains open in regard to user-assigned modules, the buttons and sliders have fixed functions. The two left-most buttons switch between three different slider modes, indicated by their three color states, off, amber, and red. As such, the sliders and the buttons next to it work in pairs. Depending on the corresponding button's state, the top slider controls functions common for the whole system, i.e., processing applied to the master output. This entails a master volume control, a DJ style combined high and lowpass filter, and saturation.
The second slider sets parameters assigned to three different morph groups – a concept used by, for example, Clavia DMI in their Nord Modular synthesizers, and in Bitwig Studio's modulator system, where the parameters assigned can have individual ranges.

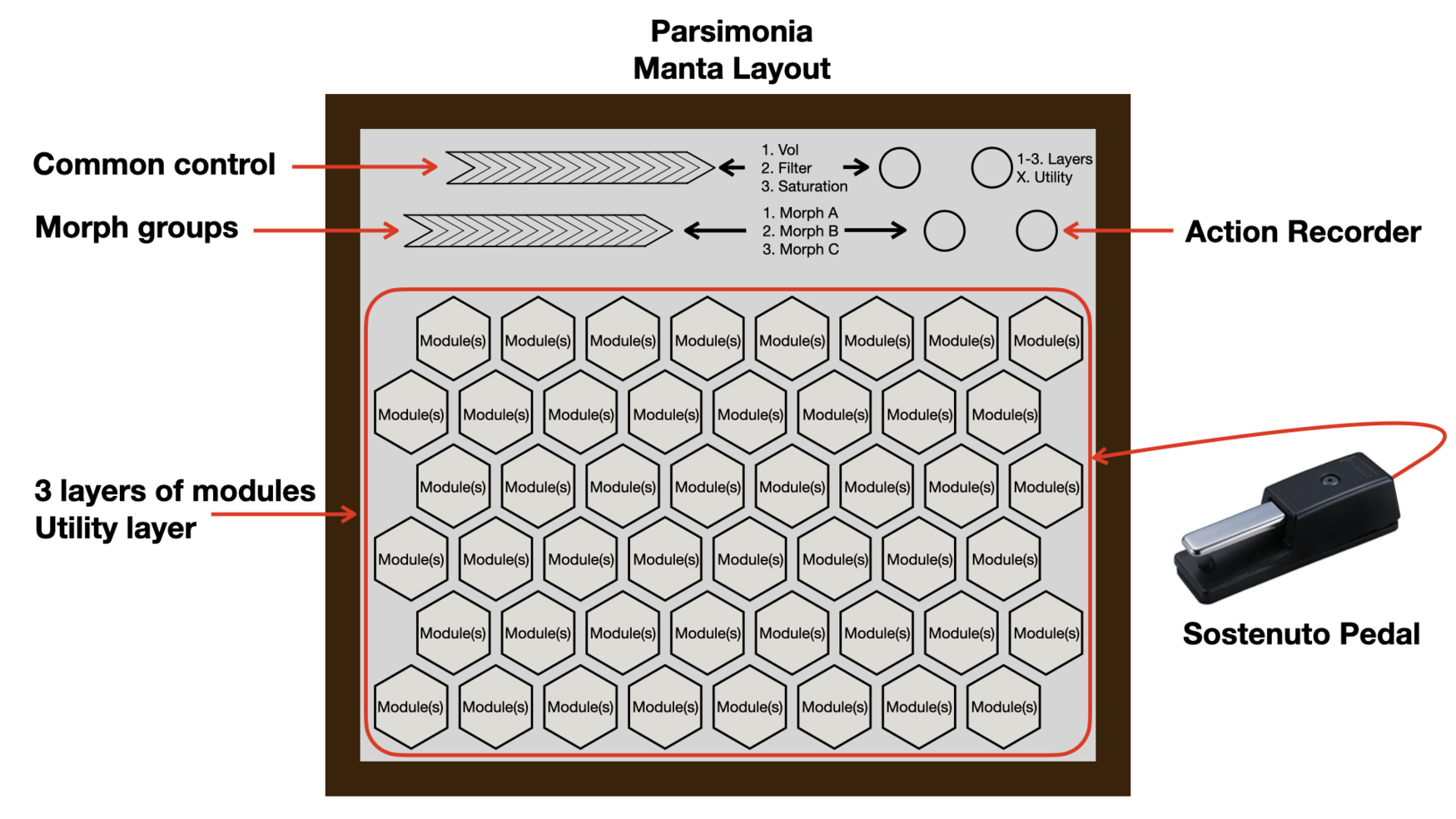

Layout
The top-right button selects between three pages for the 48 pads, again indicated by the three colors, which makes it possible to have up to 144 active pads if necessary. A long press on this button enters a special utility page intended for global functions and possibly presets for setups.
A long press on the bottom right button activates an action recorder that records the following performance actions on the pads. A short press stops the recording and then toggles between playing back the recorded actions (in a loop) or stopping.
Sostenuto Pedal
The instrument also includes an optional switch pedal that behaves similarly to a sostenuto pedal on a grand piano (the middle pedal) – i.e., it freezes the currently pressed pads in their current state until the pedal is released. This allows for more complex performances where, for example, several pads with effect modules could be held down with the pedal, freeing up the performer's hands to play on other pads.
System 2: Parsimonia
Parsimonia is a digital musical instrument (DMI) written in the SuperCollider programming language, centered around the Snyderphonics Manta controller. It has been developed and used within the framework of this thesis in several scenarios, further described in the Patches section.
The video above is from a live-streamed concert at Schhh Vardagsrummet in Östra Hoby, Sweden. It is an edited version of the YouTube stream, kindly provided by Schhh. Here, I'm playing Parsimonia and a Buchla modular synthesizer, using a conbination of samples, effects, and live input from the synth.
The video above was shot for a studio recording that was part the album dronecember 2022. From an initiative on the Mastodon social media platform, for this album, the idea was to produce a piece of drone music every day during December 2022, and share it using the hashtag #dronecember. Parsimonia was used to play an incoming drone patched up on my Buchla modular sysnthesizer (not visible in the video).
